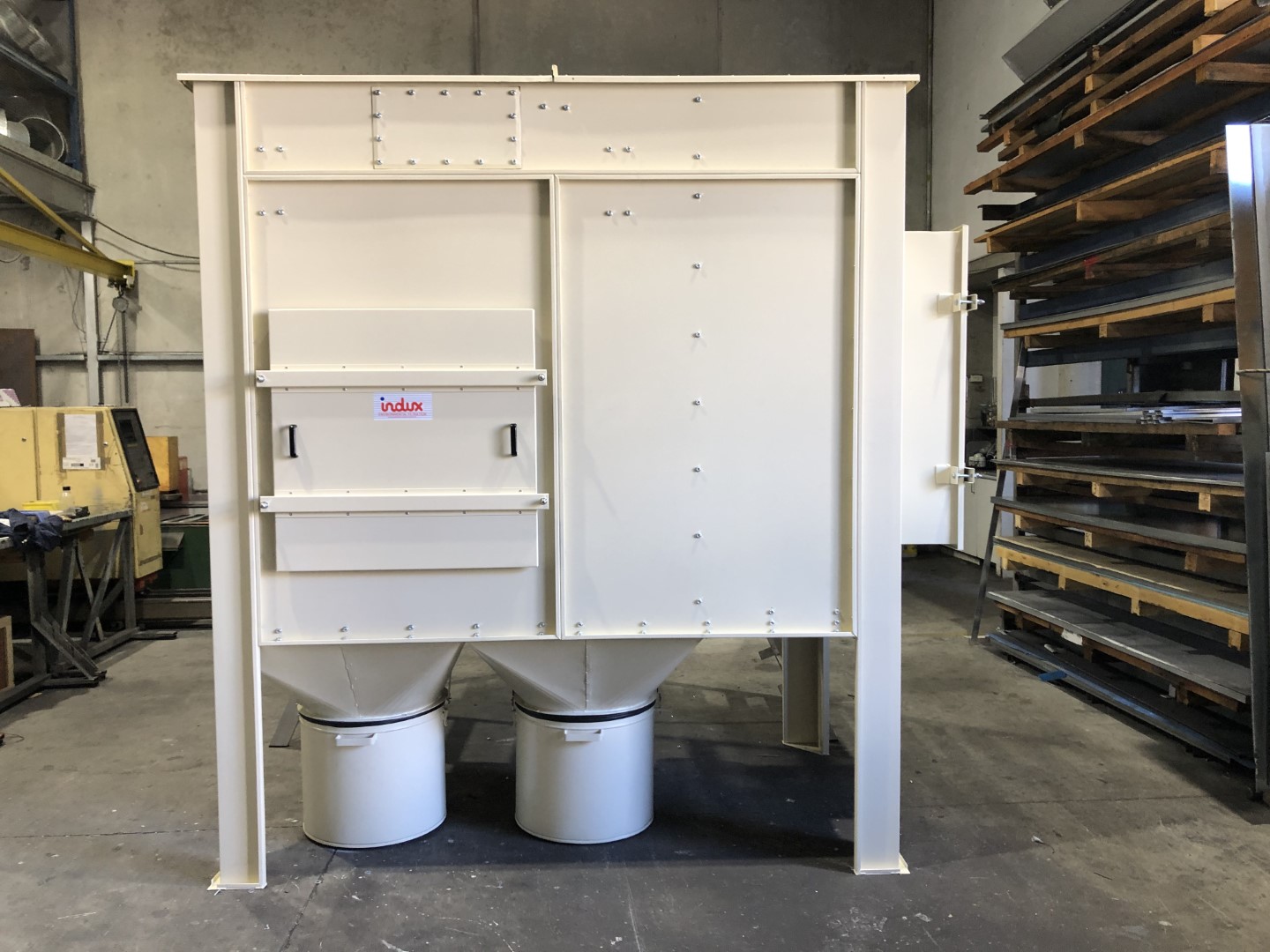

Indux UMF Compact Series

The UMF series provides a very economical, effective and compact all in one unit for workshops, laboratories, educational institutions and restricted spaces.

The Indux UMF series can be customised to fit any location or duty required. Indux products are manufactured in Australia and to order allowing for shorter lead times and more customisation than other units on the market.

Unit Construction

• Weatherproof for outdoor installation
• Constructed of prefabricated galvanised steel
• panels or powder coated zinc panels.
• Explosion Relief Panel (Outdoor application only)
• Inlet placement can be customised to be site specific.
• Heavy duty rubber door seals
• Collection bin options:
  • Standard: 100L steel construction with latches and bin balancing connections.
  • Optional: Easy release Wheelie Bin connection Or large volume Skip Bin connection.

Filters

• 99% efficient to 1µm
• High dust load rated filters with singed lining
• Large bore filters suited to the timber industry
• Premium grade long lasting filter materials in 410g/m2 & 550g/m2 :
• Material
• Standard 100% Polyester needle felt Or Antistatic 3% Carbon fibre 97% polyester need felt.
• Automatic filter cleaning system electronically activated when the unit is switched off.

Fan

• Clean side reverse curved blade impellor
• Dynamically balanced
• VSD controlled direct drive electric motor
• Sealed Lifetime bearings
• Galvanised steel casing
• Double sound insulation on casing

Control Panel

• VSD controlled Motor provides a soft start with no power surge at start up.
• Programmable auto Filter Cleaning control

Optional

• Exhaust Silencer
• Flameless Explosion Relief Vent
• Explosion Isolation NRV
• BMS connection
• Differential pressure gauge
• Bin level sensor
• Inlet Velocity sensor
• Remote Stop/Starts
• Energy saving solar power kits
